Kurvenlinfix – Flexible Curved Router Template Guide

The Kurvenlinfix makes smooth work of curved templates and fixtures. Just trace your layout with a jigsaw, screw the Kurvenlinfix along your line and trim it with a router or shaper to create a template with a smooth edge.

Here’s how:

1. Draw a curve on your template (MDF or plywood)
2. Using a jigsaw, bandsaw, or turning saw, rough cut and remove the waste leaving a 1/4 to 1/8 inch margin..

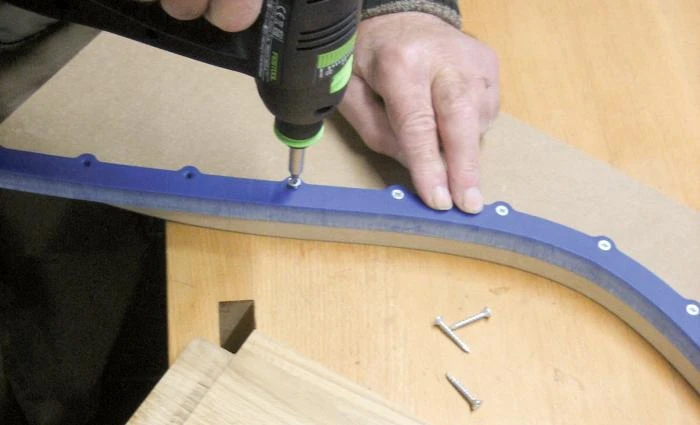

3. With the screws provided, screw the Kurvenlinfix to your template along the curve.

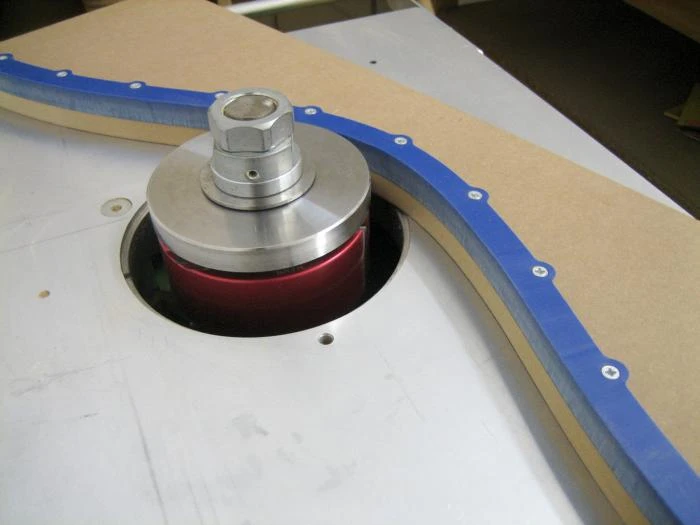

4. Using a trim bit in either a router, a router table, or a shaper, rout out the template to the final line using the Kurvenlinfix as the guide for the router bearing.
5. Remove the Kurvenlinfix from the finished template and now you have a proper template for routing out curved lines for your project.
6. For advanced profiles you can even use the Kurvenlinfix on portions of your final template and do complicated profiles in stages as needed.

The Picco Kurvenlinfix’s have a very thin section
(5/16″) and can bend around a tight curve. The Mini Kurvenlinfix’s has a thicker section (1/2″) and bend easily but with a stiffer more subtle curve. The regular Kurvenlinfix is available in lengths up to 118″ (9’10”) long and can help create a template for large architectural pieces. The 6’6″ (78.7″) middle size is great for elegant curves on most furniture including headboards.

Made in Austria.
